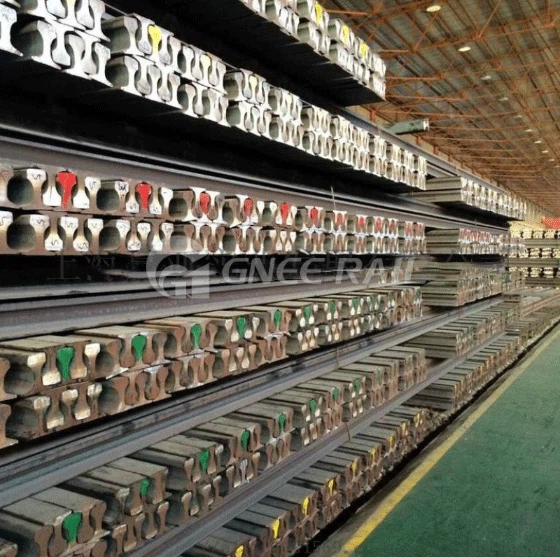

Spesifikasi rel standard Jerman
Spesifikasi: A45, A55, A65, A75, A100, A120, A150,
Standard: DIN536,
Bahan: ASSZ-1/75V/u71Mm/1100/900A/700,
Panjang: 8-25m.
Parameter teknikal bagi Rel standard Jerman
|
Jenis Rel |
Tinggi (mm) |
Lebar kepala (mm) |
Lebar asas |
Ketebalan web (mm) |
Kedalaman Kepala |
Kedalaman Pangkalan (mm) |
Berat Nominal (kg/m) |
Kawasan Keratan Rentas |
|
A45 |
55 |
45 |
125 |
24 |
20 |
8 |
22.1 |
28.2 |
|
A55 |
65 |
55 |
150 |
31 |
25 |
9 |
31.8 |
40.5 |
|
A65 |
75 |
65 |
175 |
38 |
30 |
10 |
43.1 |
54.9 |
|
A75 |
85 |
75 |
200 |
45 |
35 |
11 |
56.2 |
71.6 |
|
A100 |
95 |
100 |
200 |
60 |
40 |
12 |
74.3 |
94.7 |
|
A120 |
105 |
120 |
220 |
72 |
47 |
14 |
100 |
127.4 |
|
A150 |
150 |
150 |
220 |
80 |
50 |
14 |
150.3 |
191.4 |
